# Python
on
### Microcontrollers
\
\
An introduction to [Micropython](https://micropython.org)
on ESP32 / ESP8266 and RP2xxx
---
## Why?
- Easy
- Fun
- Favorite language
---
## OK, but how?
----
### Thonny
The easy way (OOTB)

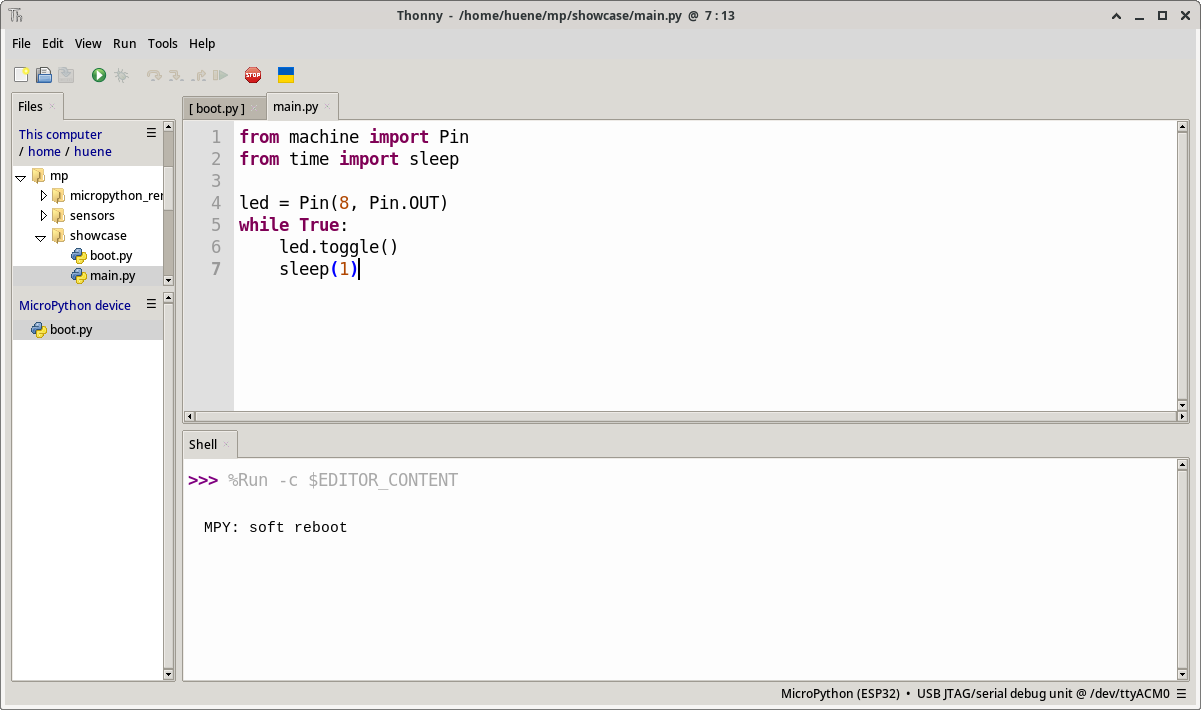

![Thonny overview](pictures/thonny_1.png)
----
### PyCharm
The familiar(?) way (Plugin required)

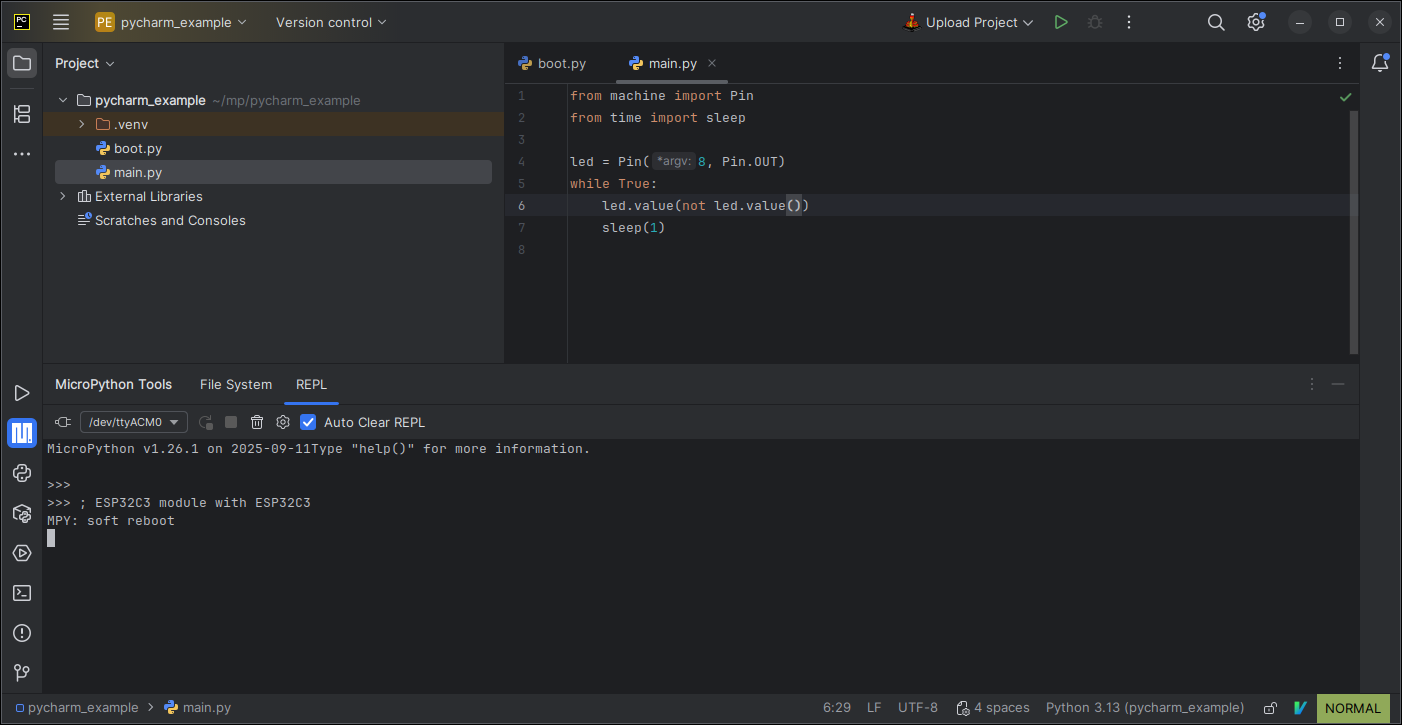

![PyCharm overview](pictures/pycharm_1.png)
----
### Terminal
The hard way
- esptool (Espressif SoC only - ESP32, ESP8266)
    - flash the firmware
    - for Linux (repos, manual install), MacOS, Windows
    - also available for pip / uv / ...
```bash
# Depending on installation method
esptool
esptool.py
python -m esptool
```
----
### Terminal
```bash
# gathering info
esptool --port /dev/ttyACM0 chip-id
esptool --port /dev/ttyACM0 flash-id

# backup
esptool --port /dev/ttyACM0 read-flash 0x00000 0x400000 backup.bin

# write operations
esptool --port /dev/ttyACM0 erase-flash
esptool --chip esp32 --port /dev/ttyACM0 --baud 460800 write-flash -z 0x1000 firmware.bin
esptool --port /dev/ttyACM0 --baud 460800 write-flash 0 ESP32_GENERIC_C3-20250911-v1.26.1.bin
```
Older syntax with "_" instead of "-" for commands, e.g. "write_flash" is deprecated
----
### Terminal
- [mpremote](https://docs.micropython.org/en/latest/reference/mpremote.html)
    - file transfer, REPL, etc
    - [package installation](https://github.com/micropython/micropython-lib) via "mip"
    - in some Linux repos
    - available for pip / uv / ...
    - implicitly auto connects if necessary
    - defaults to REPL (exit with Ctrl+X)
    - multiple commands can be queued
```bash
mpremote 			# auto connects to first device, starts REPL
mpremote a0			# alias for mpremote connect /dev/ttyACM0
mpremote soft-reset repl	# performs soft-reset, then enters REPL
mpremote cp main.py :main.py	# copies main.py to device
mpremote mip install datetime   # install datetime lib from micropython-lib repo
mpremote df reset 		# lists filesystem usage, performs hard-reset
mpremote edit main.py		# copy file to $TMPDIR, edit, copy to board
mpremote mount .		# mounts . to /remote on board, sets working dir
mpremote mip install github:brainelectronics/micropython-i2c-lcd
```

----
### Web based IDEs
- [ViperIDE](https://viper-ide.org/) (can run offline, look & feel similar to Thonny)
- [Arduino Lab for MicroPython](https://lab-micropython.arduino.cc/) (requires free account)

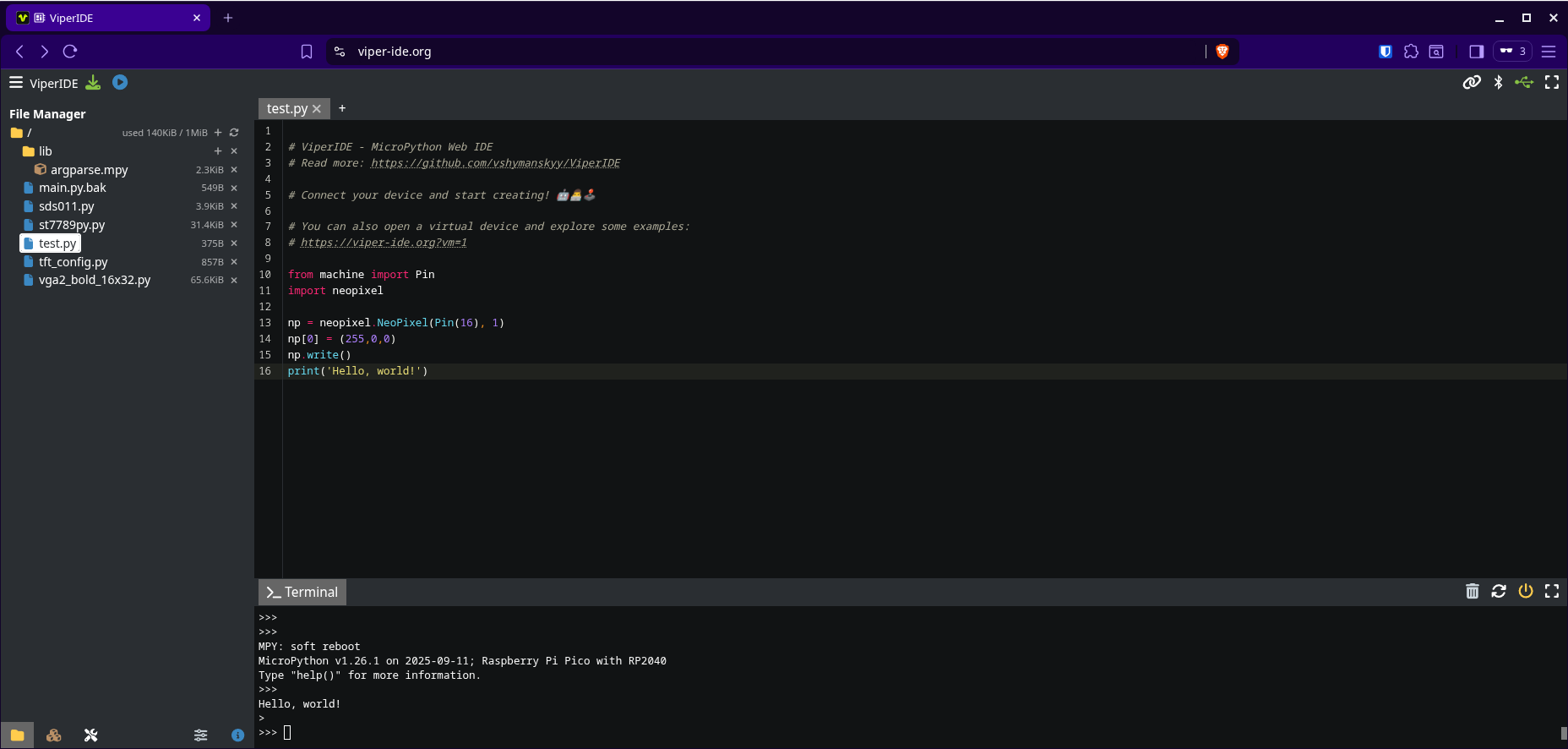

![Viper IDE](pictures/viper_1.png)
----
### Other IDEs
Stumbled upon those by chance, haven't used them (for MicroPython)
- Eclipse + PyDev Plugin
- VSCode + Plugin
    - PyMakr by [pycom.io](https://docs.pycom.io/gettingstarted/software/vscode/) (requires NodeJS)
- Arduino Lab for MicroPython
- MPY-Jama (ESP32 only)
- uPyCraft IDE
- microIDE
- Mu Editor
- probably more ...
---
### Firmware Installation
for Espressif SoC (ESP32, ESP8266)
using Thonny
- Run -> Configure Interpreter -> Install or update MicroPython (esptool)
    - Select Port (e.g. /dev/ttyACM0)
    - Select Family (e.g. ESP32-C3) and variant (e.g. Espressif ESP32-C3)
    - Select version (e.g. 1.26.1)
    - Install!
----
![Flash esptool with Thonny](pictures/thonny_2.png)
----
### Firmware Installation
for RP2xxx (Raspberry Pi Pico)
no extra software needed

- Hold BOOTSEL while power on (plug in)
- board presents as mass storage
- copy firmware (.uf2) to board
- automatically resets and installs

nice and easy
----
### Firmware Installation
Or use Thonny: Run -> Configure Interpreter -> (UF2)
![Flash UF2 with Thonny](pictures/thonny_3.png)
---
### Development
- Use your favorite IDE / editor
- Test and debug interactively with REPL
- boot.py is executed on every start (including wake from deep sleep)
    - handy for connecting to wifi, for example
        - if available
        - ✅ ESP32 / ESP8266 (Espressif, 2.4G only)
        - ❌ RP2040 / RP2350 (Raspberry Pi Pico)
----
### Development
- main.py is executed afterwards
    - should contain the main program loop
- additional files / directories can be used for better structure
    - import as usual
    - separate libs / drivers, classes, etc. from your main code
- Run code directly from the IDE or upload it and restart the microcontroller
- Install packages with [mip](https://docs.micropython.org/en/latest/reference/packages.html) or just copy them onto the file system
    - by default as precompiled bytecode (.mpy)
- [mpy-cross](https://pypi.org/project/mpy-cross/) as cross-compiler to create .mpy
    - available for uv / pip / ...
---
### What can it do?
Not much on it's own
But there are lots of available sensors, actors, ...
- Neopixel
- weather / environment
- displays / lights
- relais
- sound
- acceleration sensors
- remote control (433 MHz)
- touch sensors
- ...
----
###### Integrated protocols & peripherals
variants differ for specific boards
- SPI
- I2C
- UART
- I2S
- ADC
- DAC
- GPIO
- TWAI
- PWM
----
There are countless projects on the internet
Common examples include:
- weather station
- internet radio
- CO2 sensor
- programmable key(board)s
<br/>
<br/>
#### The sky is the limit
----
Some examples I have built:
- CO2 sensor + green/yellow/red LED for air quality
- dust particle sensor (close windows when neighbors are smoking)
    - actually also includes temperature / humidity / air pressure
- play random MP3 files (microSD card) on speaker whenever a magnet is close
- battery powered countdown timer using LEDs
- Neopixel simulating progress bar
- timer to automatically turn off magnetic stirrer
- Display with text configurable via HTTP
---
### Pitfalls
- not all Python3 libs / functions / features available (no datetime, for example)
    - due to size / computing power limitations
    - most common ones included
- epoch starts at 2000-01-01 instead of 1970
    - no internal RTC anyway, external modules exist
- deep sleep may clear memory / state, resulting in a reset upon wake
    - depends on board specifics
    - useful for battery powered projects
- 2.4G wifi only (if any)
----
### Pitfalls
- documentation for boards / components can be hard to find and/or unclear
    - pin numbers can be confusing
    - correct pinout is crucial for device communication
    - research before buying - check for available drivers (or write your own?)
- Some pins not connected / not usable
----

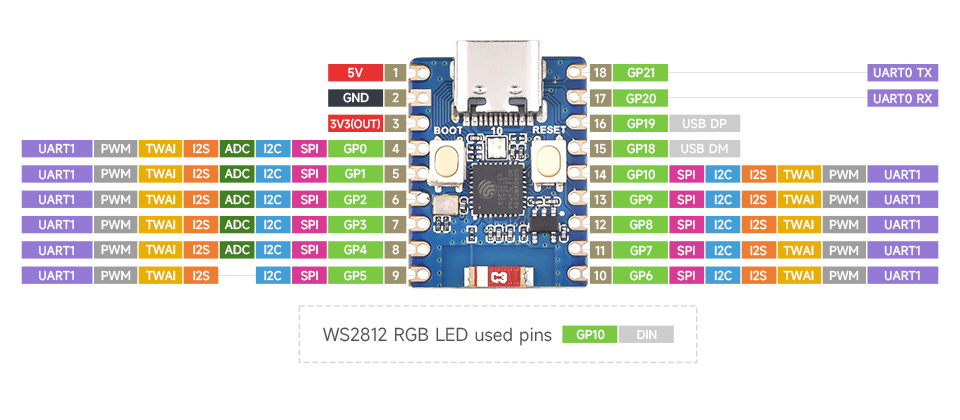

![Pinout ESP32-C3-Zero](pictures/esp32-c3-zero.jpg)
- machine.Pin(8) refers to GP8 (Pin 12) not Pin 8 (GP4)
- Pins 15/16 (GP18/19) are reserved for the debugger and cannot be used as GPIO unless you compile custom micropython firmware with the correct flags
---
### Notes on power
- Easy to power via battery (LiPo, power bank)
- Boards mostly run on 3.3V, accepting a broader voltage input range on the **Vin / 5V Pin**
    - Caution! Overvoltage on the 3.3V Pin will likely __destroy__ your board
    - specifics depend on the actual board, see docs
    - 3.7V LiPo (single cell) / 5V USB usually safe
----
### Notes on power
- Do not power from multiple sources simultaneously!
    - Disconnect other power source before connecting USB (e.g. for programming / debugging)
- Usually provides 5V and 3.3V for peripherals
    - if powered via USB or 5V/Vin Pin, not via 3.3V
- I advise against using 3.3V for power input in general
----
### Other notes
- Some boards have integrated LED(s) / Neopixel
- MicroPython supports various architectures like ARM, RISC-V, Xtensa, x86(_64), ...
    - there are boards with ARM + RISC processors
- CircuitPython is a fork by Adafruit
- ESP SoC also have Wifi & Bluetooth on board
- Variants of ESP with u.FL socket for external antenna
- Micro USB still common
- Libs often prefixed with 'u', e.g. 'utime'
    - conveniently 'import time' works as well

----
### Example boards

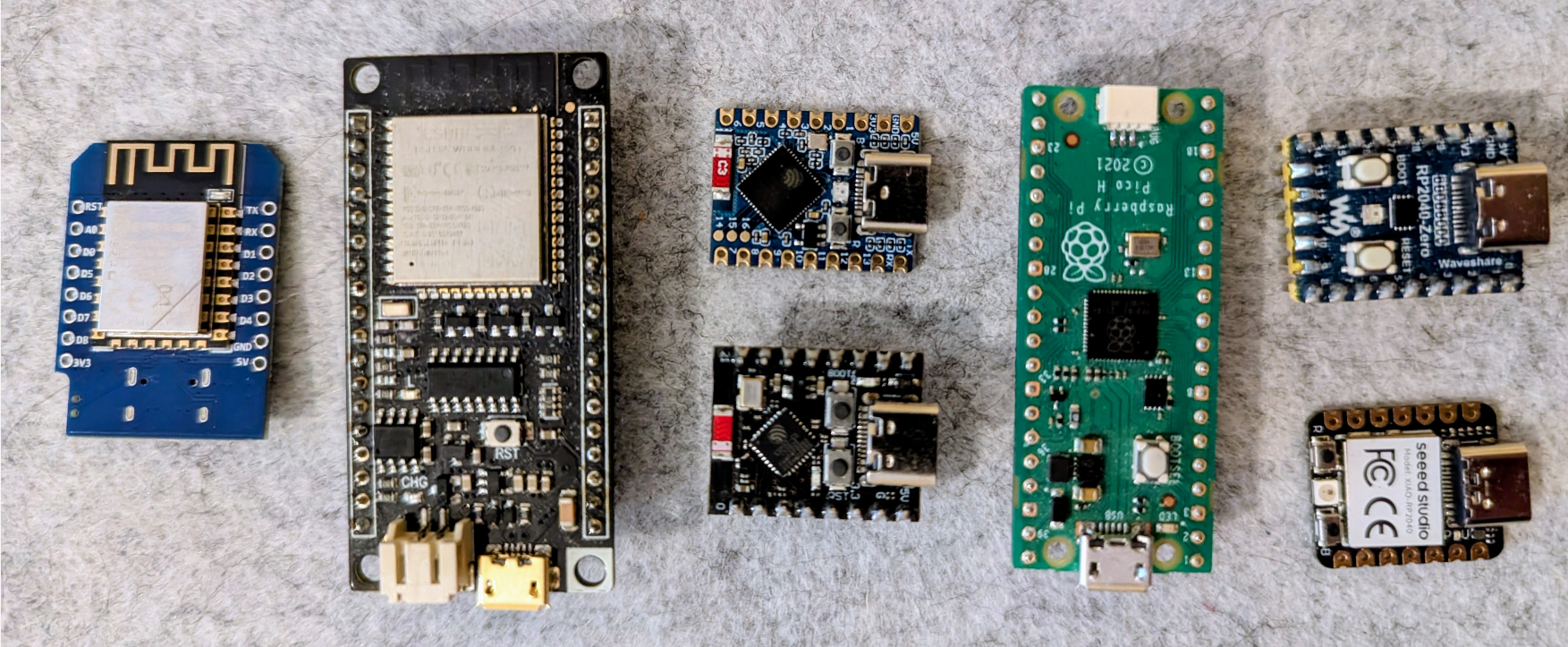

![various microcontrollers](pictures/mc_boards_1.png)

Wemos D1 Mini (ESP8266), DFRobot FireBeetle ESP32, Waveshare ESP32-S3 Zero
ESP32-C3 Zero / ESP32-C3 Super Mini, Raspberry Pi Pico, Waveshare RP2040-Zero, Seeed XIAO RP2040
---
### Optional equipment
Nice to have:
- Breadboard
- Jump wires
- Resistors
- LEDs
- Switches
- 5V Power supply
---
### Example code
Keep in mind that I'm not a fulltime developer, and these are just hobby projects
----
```Python[]
# The 'Hello, world' equivalent for microcontrollers
from machine import Pin
from time import sleep

led = Pin(2, Pin.OUT)

while True:
#    led.value(not led.value())
    led.toggle()
    sleep(1)
```
----
```Python[]
from machine import Pin
from time import sleep
from random import randint
from dfplayer import DFPlayer

df = DFPlayer(0,16,17)
trigger = Pin(18,Pin.IN, Pin.PULL_UP)
#wait some time till the DFPlayer is ready
sleep(2)
#set the volume (0-30). DFPlayer doesn't remember the setting
df.volume(15)
sleep(1)
#play file ./01/001.mp3
#df.play(1,1)
count = df.get_files_in_folder(1)
while(True):
    sleep(0.2)
    if(trigger.value()):
        df.play(1,randint(0,count)+1)
        while(df.is_playing()):
            sleep(1)
```

----
```Python[]
from machine import Pin
from time import sleep

speed = 0.5
interval_green = 40
interval = 30
green = (8,6,3,2,1,0)
yellow = (14,15,26,27)
red = (28,29)

def blink(pin, speed, count):
    led = Pin(pin, Pin.OUT)
    for i in range(count):
        led.toggle()
        sleep(speed)

def led_on(pin):
    led = Pin(pin, Pin.OUT)
    led.on()

def led_off(pin):
    led = Pin(pin, Pin.OUT)
    led.off()

for i in green + yellow + red:
    led_on(i)

for i in green:
    blink(i,speed,interval_green/speed)
    led_off(i)

for i in yellow + red:
    blink(i,speed,interval/speed)
    led_off(i)

while(True):
    for i in green + yellow + red:
        led = Pin(i, Pin.OUT)
        led.toggle()
    sleep(0.2)
```

----
```Python[]
from machine import Pin
from time import sleep
import neopixel

led_count = 60
concurrent = 6
lights_per_dot = 5
max_intensity = 128
min_intensity = 32

part_len = led_count // concurrent
np = neopixel.NeoPixel(Pin(26), led_count)
values = [255,166,115,64,13,32,32,32,32,32]
pos = 0

while True:
    for i in range(part_len):
        for j in range(concurrent):
            value = values[pos-i]
            np[i+part_len*j] = (0, value, 0)
    pos = (pos + 1) % part_len
    np.write()
    sleep(0.04)
```

----
```Python[]
from machine import Pin, ADC, reset as m_reset
from time import sleep
from json import loads
from random import randrange
import neopixel

# get order for switch riddle from config file for easier maintenance
with open('switches.cfg', 'r') as fh:
    switch_order = loads(fh.read())

# initialize pins
switch_pins = [Pin(1, Pin.IN, Pin.PULL_DOWN), Pin(2, Pin.IN, Pin.PULL_DOWN), Pin(3, Pin.IN, Pin.PULL_DOWN)]
switch_leds = [Pin(10, Pin.OUT, Pin.PULL_DOWN), Pin(21, Pin.OUT, Pin.PULL_DOWN), Pin(20, Pin.OUT, Pin.PULL_DOWN)]
analyze_pin = ADC(4)
analyze_led = Pin(9, Pin.OUT, Pin.PULL_DOWN)
hex_led = Pin(5, Pin.OUT, Pin.PULL_DOWN)
bot_pin = Pin(7, Pin.IN, Pin.PULL_DOWN)
usb_pin = ADC(0)
usb_led = Pin(8, Pin.OUT, Pin.PULL_DOWN)

# initialize global vars
hex_led_count = 30
hnp = neopixel.NeoPixel(hex_led, hex_led_count)
unp = neopixel.NeoPixel(usb_led, 1)
bot_connection = False
pixel = []
for i in range(hex_led_count):
    pixel.append(i)

# make sure all lights are off at startup
def going_dark():
    global analyze_led, hnp, unp
    analyze_led.value(0)
    for i in switch_leds:
        i.value(0)
    unp[0] = (0,0,0)
    unp.write()
    for i in range(hex_led_count):
        hnp[i] = (0,0,0)
    hnp.write()

## define functions

# reset on lost bot connection
def lab_shutdown():
    global bot_connection, unp, hnp
    if bot_pin.value() == 1:
        bot_connection = True
        return False
    if not bot_connection:
        going_dark()
        return True
    print('bot connection gone...going dark')
    shuffle(pixel)
    cnt = 0
    for i in pixel:
        print(i)
        cnt += 1
        hnp[i] = (255, 0, 0)
        hnp.write()
        sleep(1 / cnt)
    for i in range(5):
        for j in pixel:
            hnp[j] = (0, 0, 0)
        hnp.write()
        sleep(0.2)
        for j in pixel:
            hnp[j] = (255, 0, 0)
        hnp.write()
        sleep(0.2)
    sleep(0.5)
    for j in pixel:
        hnp[j] = (0, 0, 0)
    hnp.write()
    sleep(0.5)
    m_reset()

# loading animation for hexagon neopixel
def loading_animation(led_count, length, percentage, interval, post_blink):
    red = int(60 / (led_count * percentage))
    green = int(255 / (led_count * percentage))
    blue = int(240 / (led_count * percentage))
    for i in range(led_count):
        hnp[i] = (0, 0, 0)
    for i in range(length):
        for j in range(1, (led_count*percentage)+1):
            offset = (j + i) % led_count
            hnp[offset] = (red * j, green * j, blue * j)
            hnp.write()
        sleep(interval)
        lab_shutdown()
    for i in range(post_blink):
        for j in range(led_count):
            hnp[j] = (0, 255, 0)
        hnp.write()
        sleep(0.5)
        for j in range(led_count):
            hnp[j] = (0, 0, 0)
            hnp.write()
        sleep(0.5)
    for i in range(led_count):
        hnp[i] = (0, 255, 0)
        hnp.write()

# check distance sensor value
def read_distance_sensor():
    sleep(3)
    return analyze_pin.read() > 100

def get_switch_values():
    global switch_pins
    foo = []
    for i in switch_pins:
        foo.append(i.value())
    return foo

def switch_riddle():
    global switch_leds, switch_order
    alert = False
    stages = [[0, 0, 0]]
    for i in range(len(switch_order)):
        stage = stages[i][:]
        stage[switch_order[i] - 1] = 1
        stages.append(stage)
    stage = 0
    while stage < len(stages):
        lab_shutdown()
        switch_values = get_switch_values()
        sleep(0.2)
        if switch_values == stages[stage]:
            alert = False
            if stage > 0 and stage < 4:
                switch_leds[switch_order[stage-1]-1].value(1)
            stage += 1
        elif stage > 0 and switch_values == stages[stage-1]:
            alert = False
            continue
        else:
            if not alert:
                for i in range(9):
                    for i in range(len(switch_values)):
                        if switch_values[i] > stages[1][i]:
                            switch_leds[i].toggle()
                        sleep(0.1)
            for led in switch_leds:
                led.value(0)
            stage = 0
            alert = True
    return True

def shuffle(array):
    for i in range(len(array)-1, 0, -1):
        j = randrange(i+1)
        array[i], array[j] = array[j], array[i]

# main code
going_dark()
while lab_shutdown():
    sleep(1)
print('hexagon blue, wait for analyze object')
for l in range(hex_led_count):
    hnp[l] = (64, 224, 208)
    hnp.write()
lab_shutdown()
while not read_distance_sensor():
    sleep(0.5)
    lab_shutdown()
print('object found, waiting for switches')
analyze_led.value(1)
lab_shutdown()
switch_riddle()
lab_shutdown()
print('analyzing....')
loading_animation(hex_led_count, 500, 0.4, 0.04, 6)
print('waiting for usb')
while usb_pin.read() < 250:
    lab_shutdown()
    unp[0] = (64, 64, 0)
    unp.write()
    sleep(0.3)
    unp[0] = (0, 0, 0)
    unp.write()
    sleep(0.3)
print('writing usb')
for i in range(5):
    lab_shutdown()
    unp[0] = (64, 0, 0)
    unp.write()
    sleep(0.3)
    unp[0] = (0, 0, 0)
    unp.write()
    sleep(0.3)
unp[0] = (0, 64, 0)
unp.write()
print('finished, waiting for removal')
while usb_pin.read() > 250:
    lab_shutdown()
    sleep(1)
going_dark()
```

----
```Python
```
----
```Python
```
----
```Python
```
----
```Python
```
---
### Questions?
